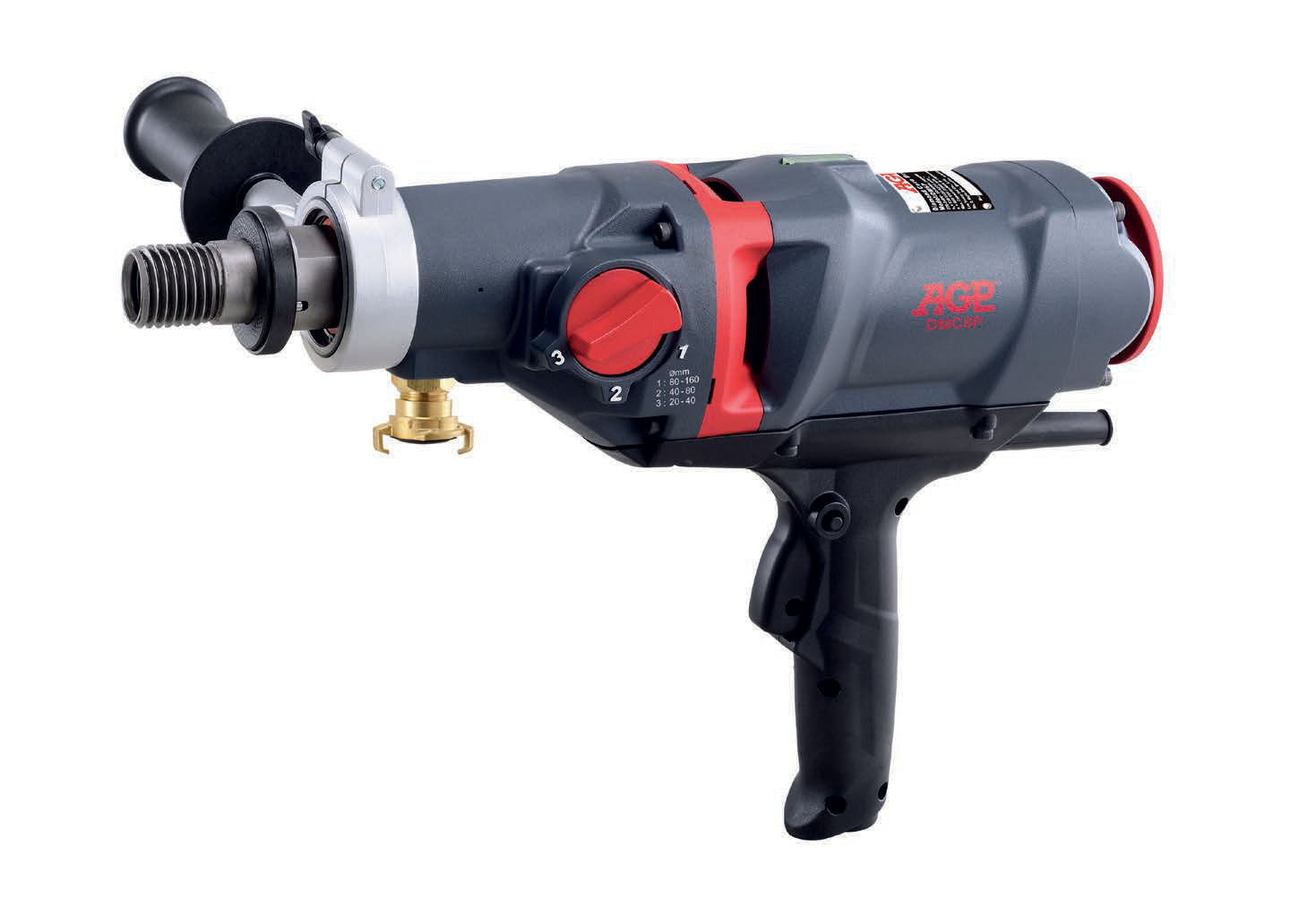

- For heavy duty drilling applications – Wet or dry core drilling
- Highly efficient 3-Speed gearbox with 1700W motor
- Includes on Geka coupling for water feed & one for through spindle dust extraction
- 162mm wet core capacity rig mounted
- 182mm dry core capacity (with use of pre-drilled pilot hole and guide rod)
- Mechanical clutch
- Magnesium motor housing & gear case for weight reduction / maximum strength
- Side handle in-line with spindle for ultimate control
- Horizontal & vertical spirit level for accurate set up
- Internal management system controls amount of power applied
- LED for overload alert
- 2-in-1 spindle – 1-1/4″ UNC (M) & 1/2″ BSP (F)
- 60mm collar for rig mounting option
- Oil bath gearbox
- Brushed motor
| Technical Data | Â DMC6P |
|---|---|
| Voltage | 110-120V – 50-60Hz |
| Input Power | 110-120V: 1700W |
| Max Core Diameter | 162mm Wet / 182 mm Dry |
| Collar Diameter | 60 mm |
| No-Load Speeds | 930 (#1), 1500 (#2), 4270 (#3) |
| Rated Load Speeds | 560 (#1), 910 (#2), 2560 (#3) |
| Weight | 6.4kg |
| Dimensions | 437 mm x 115 mm x 289 mm |
| Vibration Level | Â <1.71 m/s2 |
| EAV / ELV / Exposure Points (P/H) | EAV – 17 hrs 6 mins – ELV – >24 h – EP/H 6 |
| Decibel Level | 97.0 dB (A) |
| Plug Type | 16 amp – 3.3 KVA Transformer |
| Cord Length | 3m |
