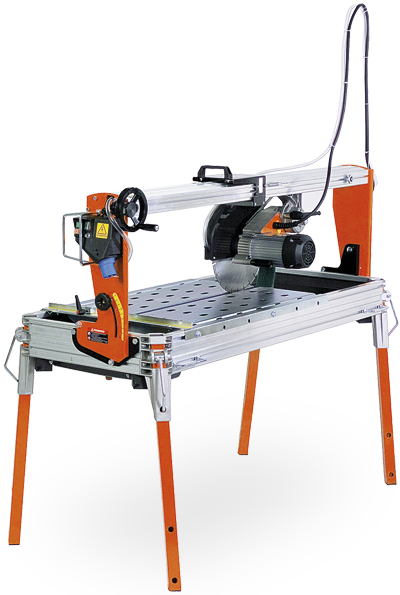

PRIME 100 BENCH SAW 3HP 115V 9100/A

PRIME is a bridge saw ideal for the building sector. New design with vanguard technical innovation, strong and precise, it is suitable for cutting bricks, stones, concrete blocks, granite, marble, slabs.
It makes cuts moving forward manually the engine group.
It is built to work with diamond disk Ø350 mm.

Equipped with:
– Single phase engine 230V 50Hz 3Hp/2,2 Kw with thermal and amperometrical protection
– Switch with release coil
– Overheat protection with manual reset
– Sliding cutting head and tilting engine
– Cutting progress system with hand wheel
– Adjustable legs
– Adjustable goniometer fence
– Water recycling pump type S3

Water cooled
Disk Ø 350 mm not included
Three phase engine available upon request.

[tabgroup style=”tabs” nav_size=”small”]

[tab title=”Tech Sepc”]

[/tab]
[tab title=”Structure”]

[row]

[col span=”4″ span__sm=”12″]

[ux_image id=”28549″]

[/col]
[col span=”8″ span__sm=”12″]

STRUCTURE

Alluminium draw-plate to get the maximum of rigidity and lightness at the same time.
BRIDGE
The rail is in extrusion of aluminium at high resistance to the torsional stress.
It’s equipped with interchangeable stainless steel bearings-tracks.
Absolute cutting precision.
SCALE MEASURE
Millimitres graduated scale for a fast execution of the cuts in series.
GONIOMETER FENCE
A professional adjustable goniometer fence is included.
SIDE TABLE
The extension side table, made in galvanized steel, is optional and can be mounted in both the sides of the machine. It allows the cut of big sizes.

[/col]

[/row]

[/tab]
[tab title=”Carriage”]

[row]

[col span=”4″ span__sm=”12″]

[ux_image id=”28550″]

[/col]
[col span=”8″ span__sm=”12″]

CARRIAGE

The carriage engine group slides on the rail by means 8 ball-bearings, of which 4 works always in perpendicular way respect to the rail. So doing the sliding is very fast and precise.

[/col]

[/row]

[/tab]
[tab title=”45° CUTS”]

[row]

[col span=”4″ span__sm=”12″]

[ux_image id=”28551″]

[/col]
[col span=”8″ span__sm=”12″]

POSITION 45° ANGLE CUTS.

Position 45° angle cuts.
The wiring of the cables is integrated inside the rail to avoid they interfere in the cutting area. Powerfull engine 3Hp / 2,2 KW with thermal and amperometrical protection.

[/col]

[/row]

[/tab]
[tab title=”Cut Depth”]

[row]

[col span=”4″ span__sm=”12″]

[ux_image id=”28554″]

[/col]
[col span=”8″ span__sm=”12″]

CUTTING DEPTH

The adjustment of the cutting depth occurs by means the locking of the tilting of the engine group. A simple and easy graduated scale measures directly the cutting depth.

[/col]

[/row]

[/tab]
[tab title=”Control Board”]

[row]

[col span=”4″ span__sm=”12″]

[ux_image id=”28552″]

[/col]
[col span=”8″ span__sm=”12″]

CONTROL BOARD

The control board includes:
– switch with release coil
– overheat protection with manual reset in the event of the disk jamming
– red light for signalling the presence to connection net
– green light for signalling machine on function
– laser instrument for the maximum cutting precision (optional in standard version)
– Plug industrial type

[/col]

[/row]

[/tab]
[tab title=”Work Table”]

[row]

[col span=”4″ span__sm=”12″]

[ux_image id=”28553″]

[/col]
[col span=”8″ span__sm=”12″]

WORKING TABLE

The working table, of large dimension (620 mm.), is made in galvanized steel.
The water tank, realized in abs material, crash and consumption proof.
– It’s easy to clean and realized to divide the cutting rubble from the recycling water’s area.
– Water recycling pump type S2 included.

[/col]

[/row]

[/tab]
[tab title=”Video”]

[ux_video url=”https://youtu.be/ICj1dXFmcAs”]

[/tab]

[/tabgroup]
